Cordstrap CornerLash®

A revolution in cargo securing

CornerLash is a breakthrough innovation in cargo securing. It is designed to secure heavy loads in containers.

CornerLash is the most time and cost efficient solution on the market. With CornerLash you can secure heavy cargo (up to 30 tons) in an easy and consistent way, in under 10 minutes!

CornerLash secures  many types of heavy loads in 20ft and 40ft containers. This includes drums, IBCs, 25 kg bags and other soft packaging.

Enquire Now
CornerLash Web Product Page - Technical Illustration
Cordstrap CornerLash AAR IBC's

Tailored to the needs of the chemical industry

CornerLash has been specifically tailored to the needs of the chemical industry. It ensures that time and cost efficiency are maximized during securing your cargo. The system can be used on rail, road and sea.

This new solution makes it easy to ship your hazardous and non-hazardous chemicals in drums and IBC’s in containers. It provides higher efficiency at a lower overall cost. Compared with existing solutions, it is less complicated and time-consuming to install CornerLash.

CornerLash is AAR approved (hazardous materials approval pending) and fully CTU code compliant.

Creating 3t Lashing Points

Traditionally, you use the container lashing points in containers to secure cargo. However, these are not always strong enough to secure heavy cargo. The floor lashing points are rated at only 1t and the ceiling lashing points are rated at only 500kg.

The CornerLash Systems inludes engineered metal elements that you can install in seconds in the corner posts of the container. These elements create an instant  lashing point that is rated and certified at 3t.

CornerLash is the only solution in the market that uses the strongest point of the container – the corner posts – to achieve optimum security.

CornerLash Web Product Page - CornerLash

Operator efficiency

CornerLash is up to three times faster to apply than existing adhesive-based solutions. ‘Plug and Play’ components – including load specific add-ons such as engineered protectors for IBC’s and EdgeBoards specially designed for soft packaging – ensure enhanced safety and speed.

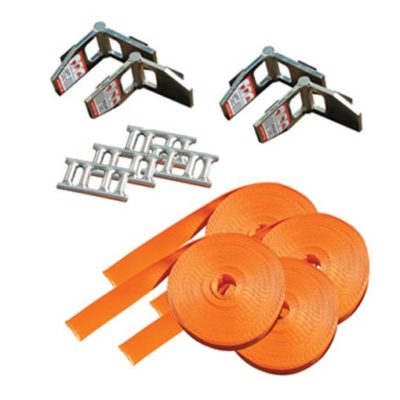

To secure one 20ft container with up to 80 drums or 18 IBC’s, the following elements are required:

  • 4 Corner Elements
  • 4 Buckles
  • 4 Lashes

Ease of inspection

When a container is opened for inspection, it can be difficult to see how cargo is secured. To make this simple, a label is provided with CornerLash. Simply attach the label to the cargo. This gives all necessary information to the inspector.

CornerLash Web Product Page - Inspection Documents

How to use CornerLash

This video shows you how to secure IBC’s inside a container using Cordstrap CornerLash.

Securing Drums in Container with Cordstrap CornerLash

Required tension for CornerLash

AAR regulations require an applied tension of 3000 daN/6600lbf, with a pneumatic tensioner used to put enough tension on the lashings. AAR regulations only apply to you if you export to the USA and your containers will continue their journey by rail. For a non-AAR CornerLash solution, you can also use a manual tensioner.

Cordstrap Tensioners
Certificates IMO AAR DNVGL

AAR approved and CTU code compliant

Cargo can be transported via a number of alternatives, including ships and railcars. Different rules and regulations apply when it comes to cargo security in various global markets.

The Cordstrap Cornerlash solution is internationally approved by the American Railroad Association (non-hazardous), witness tested by Germanischer Lloyd and is fully CTU code compliant.

Other lashing solutions…

Lashing Machinery on Flat Rack with Cordlash 200
Flat Rack Lashing Solutions
Lashing Super Yacht on Board Ship with Cordlash
Break Bulk Lashing Solutions
Composite Lashing Securing Machinery in container
Container Pack Solutions
